Curtain Rods and Hardware: Types, Sizing and Hanging Rules

The simplest rule for hanging curtain rods: mount the rod 2-3 inches below the ceiling or crown molding (or at least a few inches above the window frame), and let it extend about 8-12 inches past the frame on each side. Then pick hardware that matches the weight of your fabric.

If you're unsure where to start, don't worry. Most of the decisions come down to four things: rod type, strength, finish, and how the curtains attach. This guide covers each, with clip rings as the example.

Save

What are the main curtain hardware types?

A full set usually includes the rod, two or more brackets, finials (the decorative end caps), and rings or hooks. Some sets include everything; others sell each piece separately, so check the box before you buy.

• Standard mounted rods sit on brackets screwed into the wall or frame. They suit most windows and carry the most weight.
• Tension rods press between two walls with spring pressure. They need no drilling, which helps renters, but they suit only light fabrics and narrow openings.
• Decorative rods with finials add a visible end detail and work well in living rooms.
• French return rods curve back to the wall, which closes the side gap and reduces light leaking around the edges.
• Traverse rods use a cord or wand to draw the curtains, so you don't have to touch the fabric.

Finials are mostly cosmetic, but a rod with a return or a large finial needs a little more wall space on each side. Plan that into your width.

How wide and how high should the rod go?

Extend the rod about 8-12 inches beyond each side of the window frame. That lets the open panels rest on the wall instead of covering the glass. A wide sliding door may need more.

Daylight matters here. Windows are a main source of natural light, and the U.S. Department of Energy's building science page notes that overhangs, fixed shades, louvers, and screens can help control unwanted glare and heat. Curtains do a similar job indoors, so a wider rod lets you open them fully when you want the light.

For height, higher usually looks better. Mount the rod 2-3 inches below the ceiling in a standard 8-foot room. With taller ceilings, place it at least several inches above the frame. For an arched window, mount above the arch instead of cutting across it. As an architect, I'd always go higher than the molding: it lengthens the wall and makes the ceiling feel taller.

Save

How do you choose heavy duty curtain rods and brackets?

Weight is where cheap hardware fails. Velvet, lined linen, and blackout panels are heavy, and a thin rod will bow in the middle.

• Choose a rod diameter of about 1 inch or more for heavy fabric, and a thicker one for wide spans.
• Add a center support bracket when the rod is longer than roughly 4 feet.
• Screw brackets into studs or use proper wall anchors rated for the load. Drywall alone won't hold a heavy rod for long.
• Avoid telescoping rods for clip rings when you can. The joint catches the rings. If you must use one, put the joint in the center, where panels rarely slide.

If you have a dog that brushes past the curtains or tugs on them, sturdy anchoring is worth the extra time. For drilling near wiring or into masonry, a licensed professional is a sensible call.

Which finish works best, and are black curtain rods still popular?

Black curtain rods are a common choice because they read as a thin, graphic line against light walls and pair well with many styles. Brass, bronze, and brushed nickel are also widely used. I can't point to a measured trend, so choose by room rather than by fashion.

Match the rod to other hardware in the room, such as cabinet pulls or light fixtures. Match the rings and clips to the rod as well. A matte black rod with matte black clips looks deliberate; mixed metals on one rod tend to look accidental.

When do you need double curtain rods for sheer and blackout curtains?

Double curtain rods for sheer and blackout curtains let you layer two panels on one bracket. The sheer goes on the rod closest to the glass, and the heavier panel goes on the outer rod.

This setup gives you daytime privacy with soft light, then full darkness at night. In a living room that doubles as a TV room, it also lets you cut glare without losing the view. Make sure the bracket projection is deep enough for both layers to move freely, and use the stronger rod for the heavier fabric.

Save

How do clip rings change your measurements?

Clip rings are an easy way to hang ready-made panels, and they add a little length to your calculation. The fabric hangs from the clip, below the ring, so the panel sits lower than it would with a rod pocket.

1. Measure from the rod to where you want the hem to end (just above the floor, about 1/4-1/2 inch, or lightly touching it).
2. Subtract the ring drop, usually about 1-2 inches. Check your product's measurement.
3. Buy panels at or slightly above that length. It is easier to hem or fold over extra than to fix curtains that stop short.

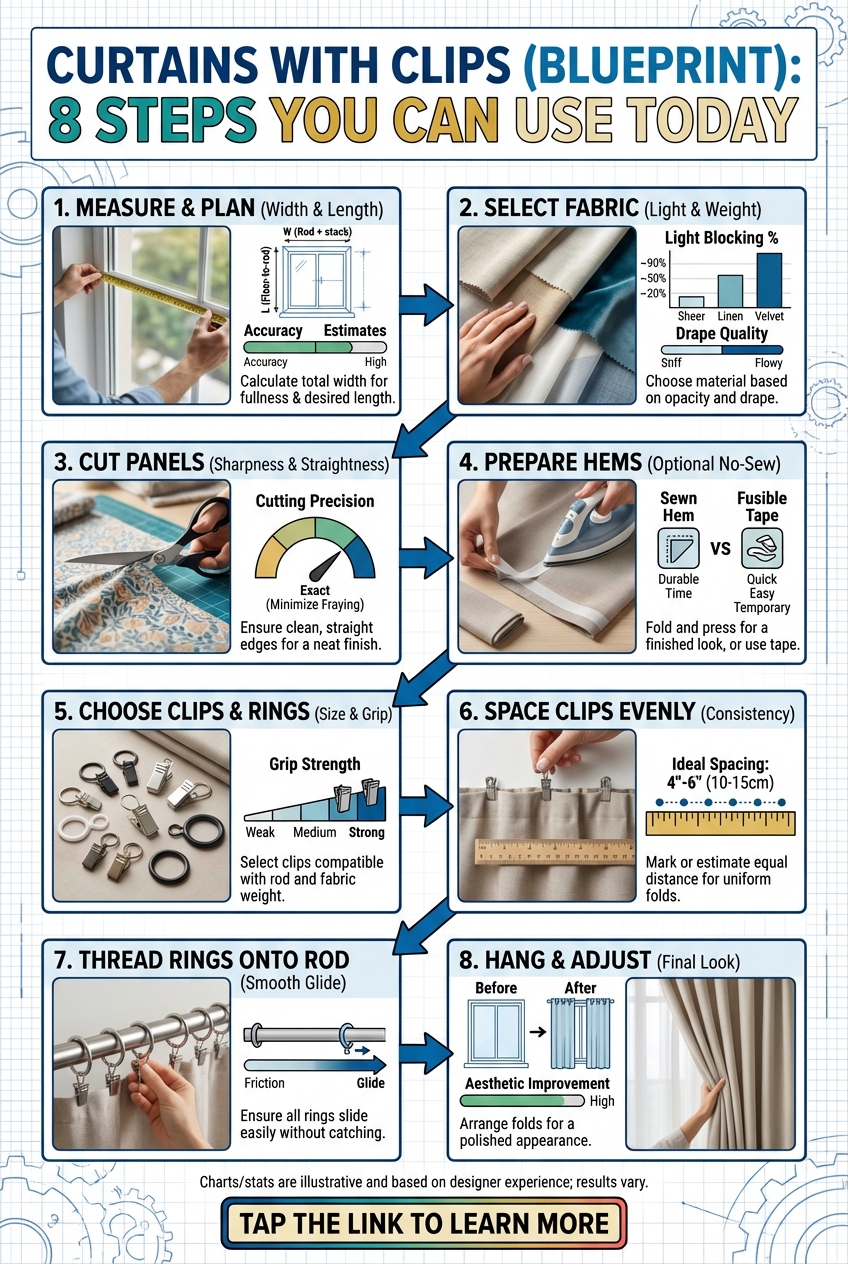

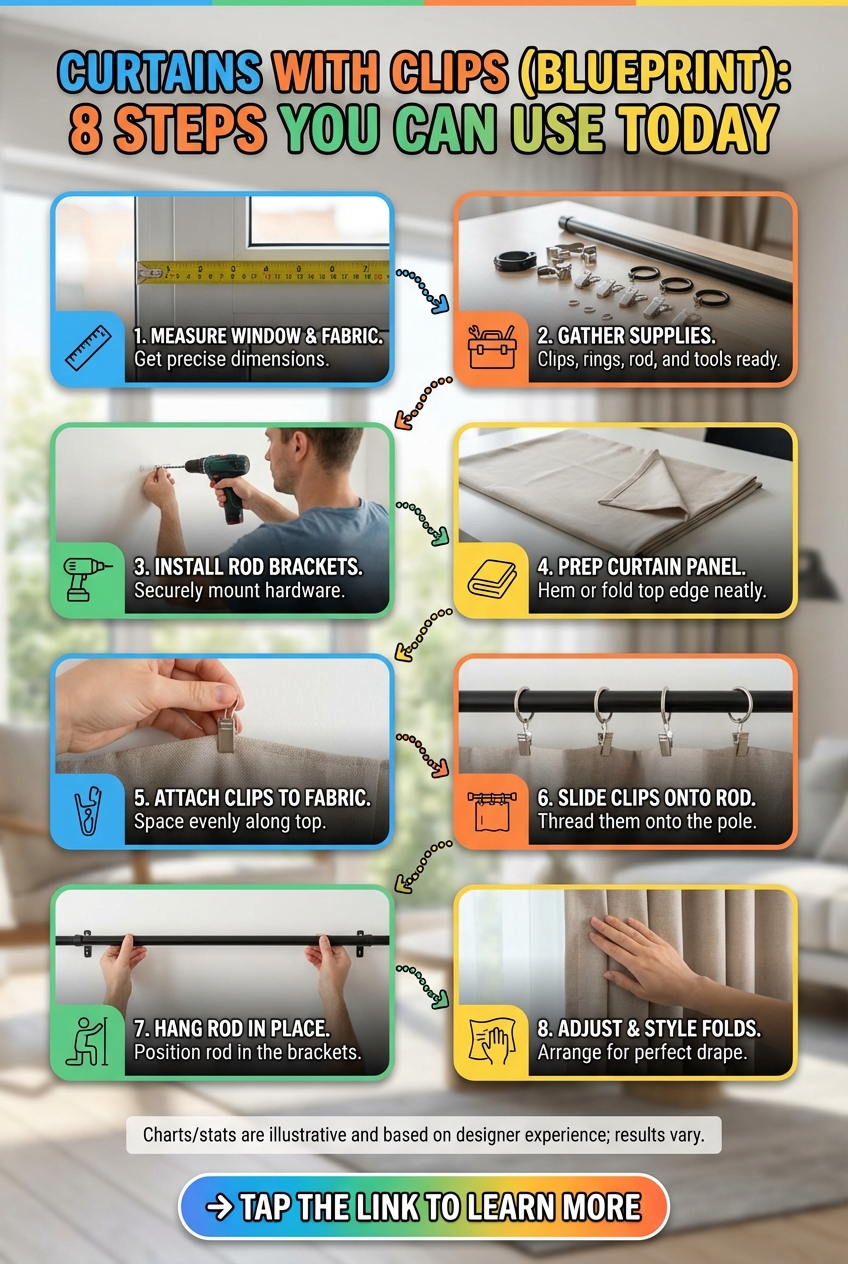

For spacing, a typical 50-inch-wide panel looks tidy with about 7-9 clips. Clip the outer edges first, then the center, then keep halving the gaps. For full detail, see our guide on how to hang curtains with clips.

For fullness, the total curtain width should be about 2 to 2.5 times the window width. Fewer panels read like a flat sheet.

Save

What if your rod is noisy or the drapes keep sliding?

Metal rings scraping on a metal rod can be loud. A little wax rubbed along the rod's top, or a smoother finish, usually quiets it. If the opposite is your problem, see how to keep drapes from sliding on rods.

If you don't want rings at all, curtain rings without clips are one option, and curtains without rods and hooks covers renter-friendly alternatives.

Delicate fabrics deserve care too. Clip teeth grip firmly, so fold a bit of felt or twill tape over the fabric edge before clipping silk or thin linen. Remove clips before washing, since metal can rust and snag.

Save
